- Manufactured with superior features, these units are sold with the frame, fabric tops and storage boots packaged separately.
- Frames are available in bright dip anodized aluminum. bright dip anodized aluminum frames come with marine grade nylon hardware.
- High-tech ATLAS marine-grade waterproof and breathable fabric (310 g/m2)
- UV and weather-resistant color fastness level 6-7, mildew-resistant
- Ø22 mm anodized aluminum frame for strength and reliability.
- Superior durability and quality with nylon tie downs front and back, marine grade fittings.
- Comfortable sailing on the water at 35 knots
- Multiple canopy colors and mounting widths available

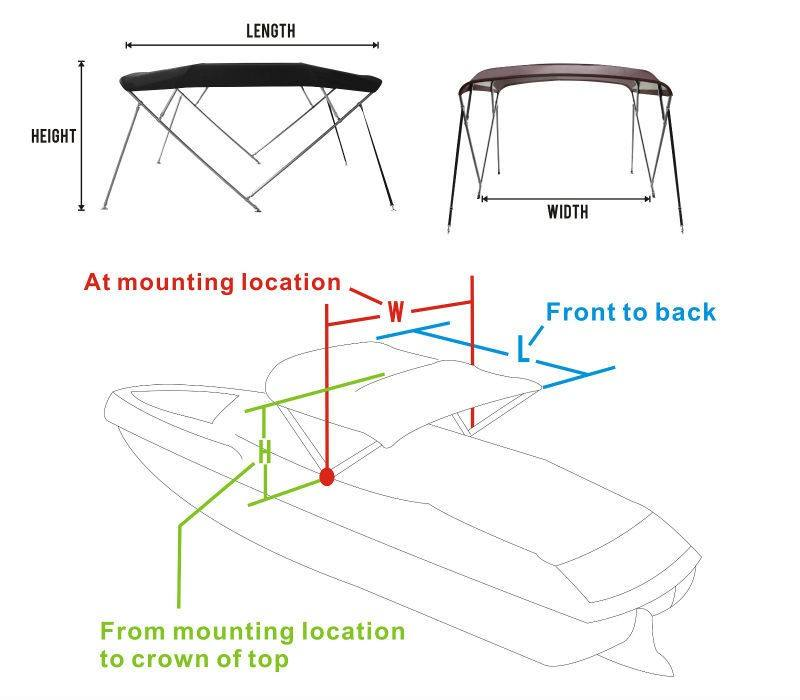

Step 1 - Measure and select your frame
1. Determine the length: 4', 6' or 8'.
2. Determine the height: 36" 42" or 54".This is the maximum standing height under the frame, measured from the mounting location points.
3. Determine the width: 60" to 103".Measure from the mounting point on one side of the boat, to the same location on the opposite side of the boat.
Widths of the Bimini BoaTops® are specified in increments of 6". Choose the width that best matches your mounting point measurement.
Frames are designed as 'knock-down' frames, meaning they snap together via double-sided snap buttons.
Bow count refers to the number of bows that make up the frame. Three-bow models are compatible with 4' and 6' long tops and four-bow with 8' long tops.
Step 2 - Select your fabric
From the economical Hot Shot™ solution-dyed fabric to the premier durability and style of Sunbrella®, the choice is yours when it comes to your bimini. All of our fabric choices are treated for water repellency and mildew resistance to withstand the harsh marine environment.
Step 3 - Select your storage boot
Zippered storage boots provide a convenient way to keep your top clean and neat while being stored. Boot sizes are determined by frame width. Boots are available in the same fabrics as the tops above. All boots feature full-length separating zippers for easy storage and removal.
| SPU | Size() | Size(cm) |
| 262120 | 6 'L*61-66"W*42"H | 183*155-168*107 |
| 262130 | 6 'L*67-72"W*42"H | 183*170-183*107 |
| 262140 | 6 'L*73-78"W*42"H | 183*185-198*107 |
| 262150 | 6 'L*79-84"W*42"H | 183*201-213*107 |
| 262160 | 6 'L*85-90"W*42"H | 183*216-228*107 |
| Weight | 310g/m² |
| Material | 100% High Tech Polyester |
| Water Column | ≥ 150 mbar (1500 mm) |
| Light & Weather Fastness | Note 6-7 |
| Tensile Strength | ≈ 2200 N¹ | 1400 N² |
| Elongation | 伸长 ≈ 40 %¹ | 30 %² |
| Colour Fastness to rubbing | Note 4-5³ | Note 44 |
| Chlorine Resistant | Note 4-5 |
| Water Repellency | Note 100 |
| Oil Repellency | Note 4 |
| Coating | Polyurethan [PU] |
| UV Protection Factor | UPF 50+ (measured > UPF 80) |
| Pieces of products | One set |
| weight | kg |
| Package weight | kg |
| Product Size (cm) | cm |
- The combination of height and length determines how much shade the Bimini BoaTop® will provide.
- Think about how you use your boat and what you want to shade:
- For example, if you want to shade yourself and your children in the rear, you may need the longest bimini of medium height.
- If you often go out fishing alone, you may need the taller, shorter Bimini BoaTop®.
1. How to choose materials?
Tell me about your market positioning, your customer base, we will customize the business for you
2. How to ensure product quality?
Inspection of raw materials, inspection of production process, and completion of production Sampling Test
3. What should I do if there is a problem?
Due to accidents during production, delivery Date has been postponed. We will compensate all damages
4. Do you accept customized services?
Whether it is a logo, trademark or outer box Can be customized according to customer needs
5. What is the MOQ?
Accept 1 piece if we have stock; If we don't have stock, 30-100 pieces is our MOQ. Depends on product.
Specifications
| Color | |
|---|---|
| Fabric Color: | White, Navy Blue, Magenta, Pacific Blue, Black, Grey, Beige, Green |
| Standard | |
|---|---|
| 3 BOW | 6'L*54"-60"W*42"H, 6'L*61"-66"W*42"H, 6'L*67"-72"W*42"H, 6'L*73"-78"W*42"H, 6'L*79"-84"W*42"H, 6'L*85"-90"W*42"H, 6'L*91"-96"W*42"H, 6'L*97"-103"W*42"H, 6'L*54"-60"W*54"H, 6'L*61"-66"W*54"H, 6'L*67"-72"W*54"H, 6'L*73"-78"W*54"H, 6'L*79"-84"W*54"H, 6'L*85"-90"W*54"H, 6'L*91"-96"W*54"H, 6'L*97"-103"W*54"H |
| Tags | |
|---|---|
| Tags | |
